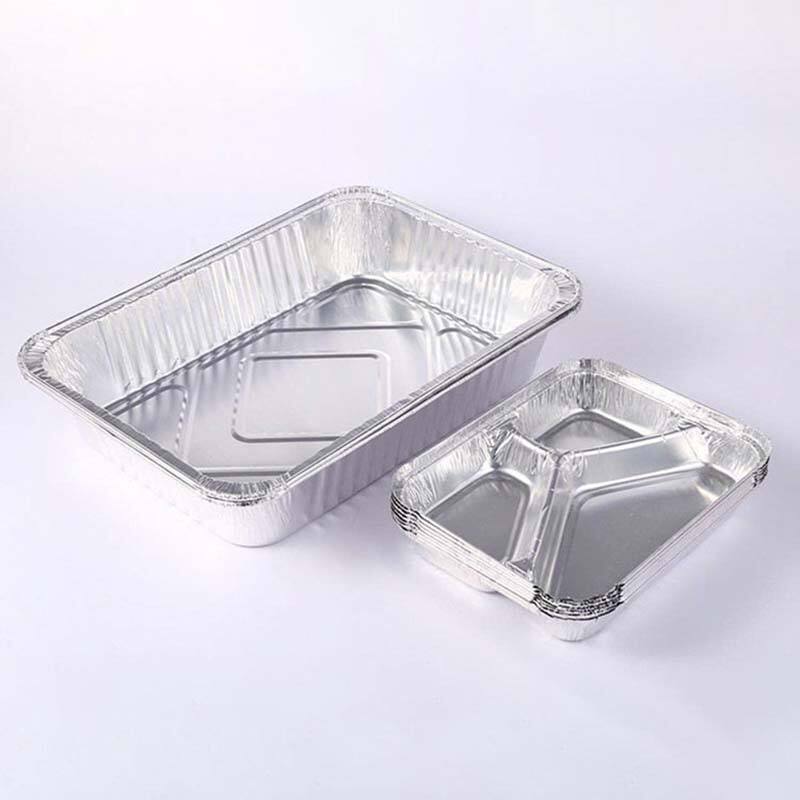

3003 aluminium foil is a common product of Al-Mn series alloys. Because of the addition of alloy Mn element, it has excellent rust resistance, weld ability and corrosion resistance. Similarly, 3003 aluminum foil is also a non-heat treated alloy, so a cold working method is used to improve its mechanical properties, but 3003 aluminium foil with medium strength is 10% stronger than 1 series alloy aluminum foil. In addition, the plasticity and welding performance of 3003 aluminium foil is also very good. So, It is a good choice for aluminum foil for electrolytic capacitor, lunch box container, and aluminum honeycomb core material.
Product Detail
AL 3003 is an alloy with very good corrosion resistance and moderate strength. It does not heat treatable and develops strengthening from cold working only. Main tempers for aluminum foil 3003 include H18, H22, H24, and other tempers upon request. This alloy provides a better heating and cooling environment so that widely used in household applications.
Technical Parameter of 3003 aluminum foil
Element |
Si |
Fe |
Cu |
Mn |
Zn |
Other |
Al |
Ingredient |
0.6 |
0.7 |
0.05-0.2 |
1-1.5 |
0.1 |
0.15 |
Margin |
Alloy type |
3003 aluminium foil |
||||||
Alloy state |
F, O, H14, H16, H18, H19, H22, H24, H26, H28 |
||||||
Thickness (mm) |
0.014-0.2 |
||||||
Width (mm) |
100-1600 |
||||||
Length |
Coil |
Features and Applications of 3003 Aluminum Foil
AL 3003 alloy is readily machined and is considered as having good machinability for aluminum alloys. Typically, alloy 3003 is used in a number of industries. For instance, aluminum alloy 3003 is easily found in home appliances. From cooking utensils, and bakery molds to office equipment it has many applications that you would find in your everyday lives.
